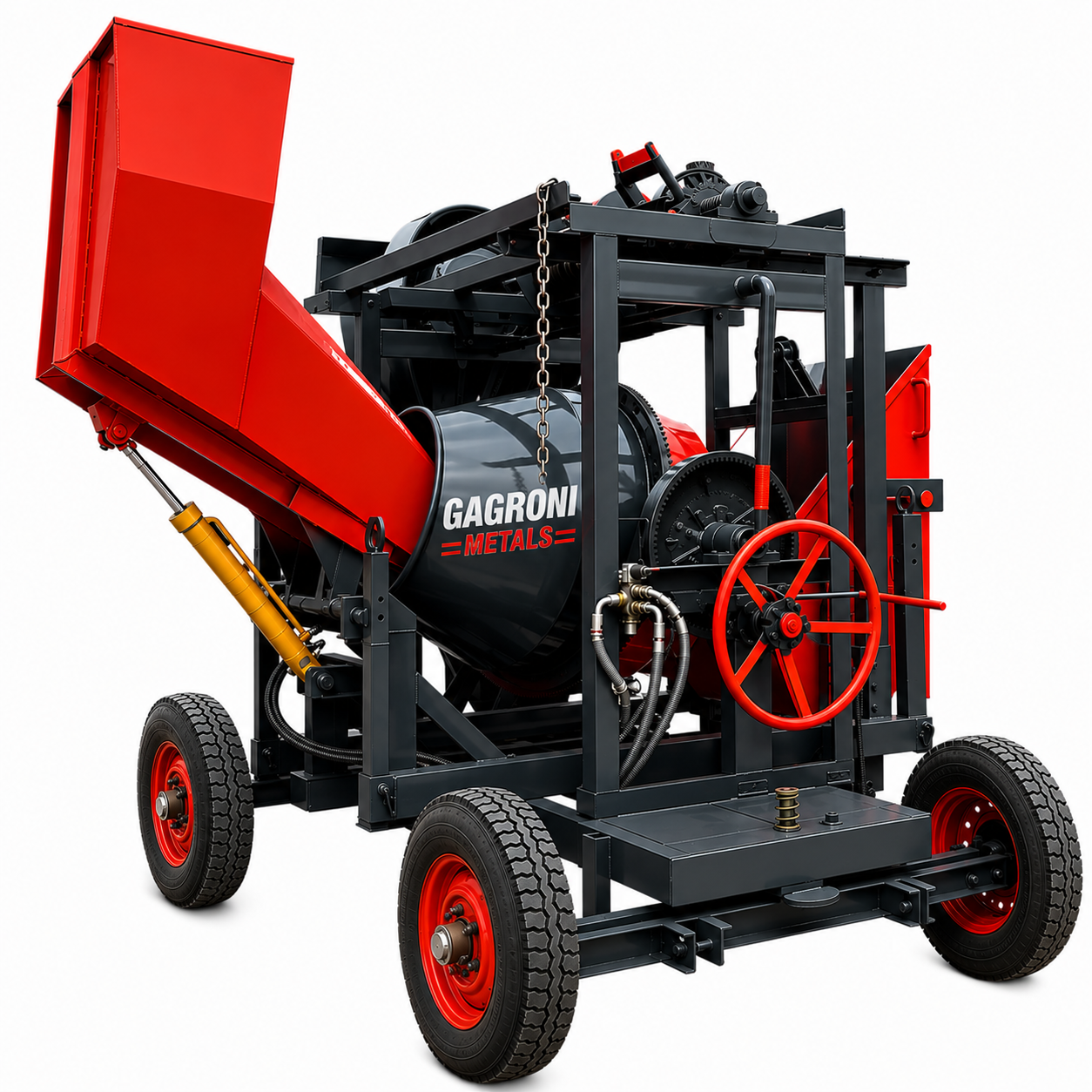

Heavy Duty Hydroulic Hopper Lift Mixer Machine 22HP
LIFT MACHINES
Gagroni Metals Hydraulic Hopper Concrete Mixer with Channel Type Hoist (1.5 Bag)Technical SpecificationsSpecificationDetailsManufacturerGagroni MetalsMachine TypeHydraulic Hopper Concrete Mixer with Tower HoistMixer Capacity1.5 BagDrum Capacity0.22 m³Engine22 HP Topland Diesel EngineEngine OptionsAir-Cooled / Water-CooledHydraulic SystemHeavy-Duty Hydraulic Oil PumpHopper TypeHydraulic Cylinder OperatedHopper Lifting Capacity2 TonLift HeightUp to 55 FeetLift Channel4" Heavy MS Channel (Approx. 3 kg/ft)Drum Diameter39 InchesDrum Base Plate12 mm MS PlateDrum Middle Plate8 mm Hardox PlateDrum Upper Cone5 mm Hardox PlateWater Filling SystemEngine-Driven Water Pump with Direct Drum Water FillingEmergency DriveTractor PTO Compatible (Machine can operate using tractor PTO if the main engine fails)Engine Drive SystemTriple (3) Heavy-Duty V-BeltsHoist SystemHeavy-Duty Chain Lift MechanismStabilizersFour Heavy-Duty Side Jack Chudi Type Stabilizers for Maximum StabilityMachine Length10 FeetMachine Width7 FeetWidth with Hopper11 FeetMachine Height9 FeetWheel Barrows Included2 Heavy-Duty Wheel BarrowsSteel Brands UsedTata Steel, JSW Steel & Rotech MC SteelThe Gagroni Metals Hydraulic Hopper Concrete Mixer with 55 Ft Tower Hoist is a heavy-duty 1.5 Bag (0.22 m³) construction machine engineered for high productivity and long service life. Powered by a 22 HP Topland diesel engine (available in both Air-Cooled and Water-Cooled models), it features a 2-ton hydraulic hopper, 55-foot material lift, 39-inch Hardox mixing drum, and an engine-driven water filling system. The machine also includes a Tractor PTO backup drive, ensuring continuous operation even if the engine is unavailable. Built with premium Tata, JSW, and Rotech MC steel, it delivers exceptional strength, reliability, and performance for all types of construction projects.
- Weight: 3 Ton
- Power: 22HP
- Capacity: 1.5 Bag / 0.22 m3
Contact us for pricing.
Pre-order / manufacturing slot booking required
